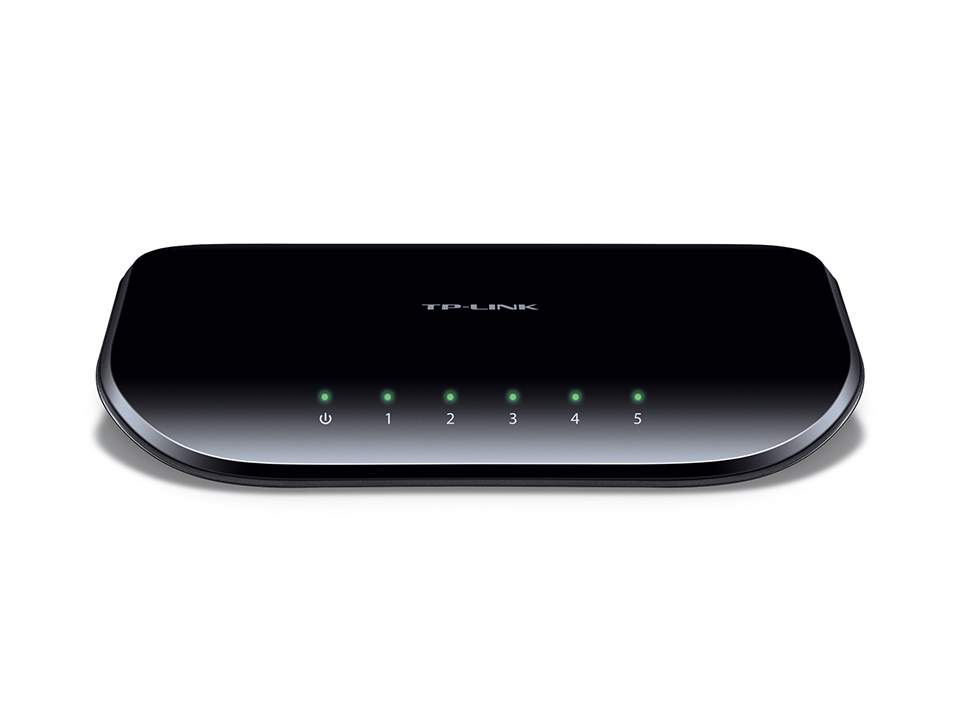

The TL-SG1005D 5-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly. TL-SG1005D adopts Green Ethernet technology. It can automatically power down ports that have no link, and budget power output for different cable length. With Green Ethernet technology, T:-SG1005D can help you save power and network cost.

Features

Adopts Green Ethernet technology, saving power and cost

Supports IEEE 802.3x flow control for Full-Duplex mode and backpressure for Half-Duplex mode

Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

Supports MAC address auto-learning and auto-aging

Plastic case, desktop or wall-mounting design

External power adapter supply

Specifications

Standards and Protocols :
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP

Basic Function :
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Backbound Bandwidth : 10Gbps

MAC Address Table : 1k

Forwarding Rate :
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port

Transmission Method : Store-and-Forward

Ports : 5 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media :
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Indicators : Power, Link/Act (100M, 1000M)

Safety and Emission : FCC, CE

Environment :
Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing

Power :External Power Adapter

Dimensions / Weight

Dimensions (WxDxH) : 6.5 x 4.3 x 1.1 in. (165x108x28 mm)

Packing Dimension LxWxH : 11 x 4 x 8 inch

Weight : 2lbs

Warranty

2 Year
