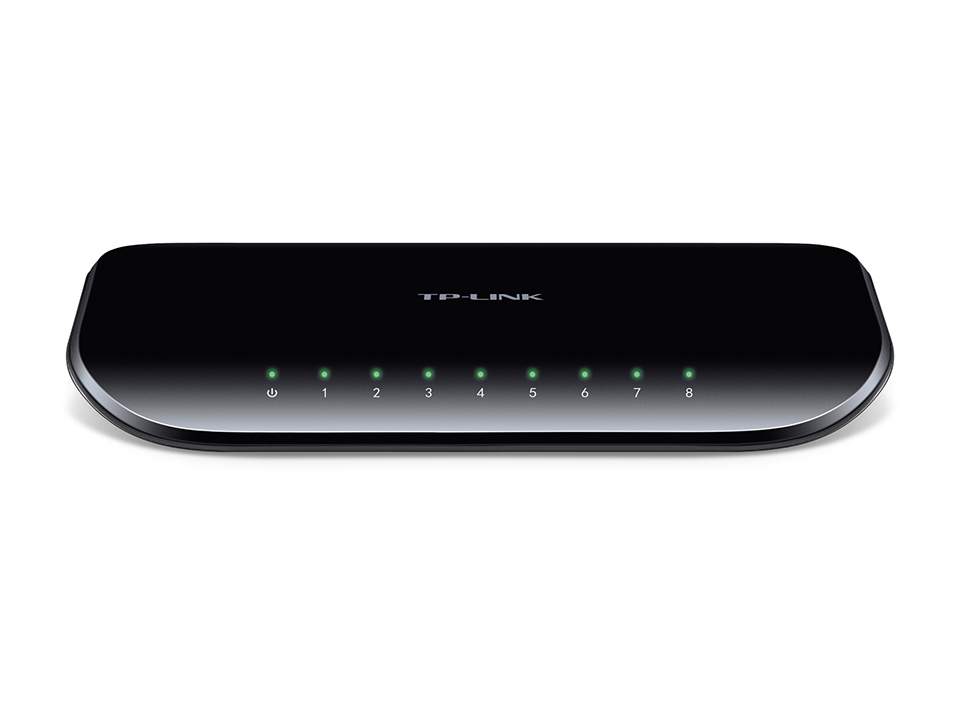

TP-Link Network TL-SG1008D 8-port Unmanaged Gigabit Desktop Switch Retail
VPN:TL-SG1008D
$41.00
STOCK:
  • Overview
  • Specification
The TL-SG1008D 8-port Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files and other applications that have to move large files across the network almost instantly.

Features

Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode

Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput

Supports MAC address auto-learning and auto-aging

LED indicators for monitoring power, link, activity

Plastic case, desktop or wall-mounting design

External power adapter supply

Specifications

Standards and Protocols :
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP

Basic Function :
Wire-speed Performance
MAC Address Auto-Learning and Auto-aging
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Backbound Bandwidth : 16Gbps

MAC Address Table : 4k

Forwarding Rate :
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port

Transmission Method : Store-and-Forward

Ports : 8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media :
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100U STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

LED Indicators : Power, 10/100M, 1000M

Safety and Emission : FCC, CE

Environment :
Operating Temperature: 0C-40C (32F-104F)
Storage Temperature: -40C-70C (-40F-158F)
Operating Humidity: 10%-90% non-condensing
Storage Humidity: 5%-90% non-condensing

Power : External Power Adapter

Dimensions / Weight

Dimensions (WxDxH) : 7.9 x 5.5 x 1.1 in. (200 x 140 x 28 mm)

Packing Dimension LxWxH :11 x 4 x 8 inch

Weight : 3lbs

Warranty

2 Year
