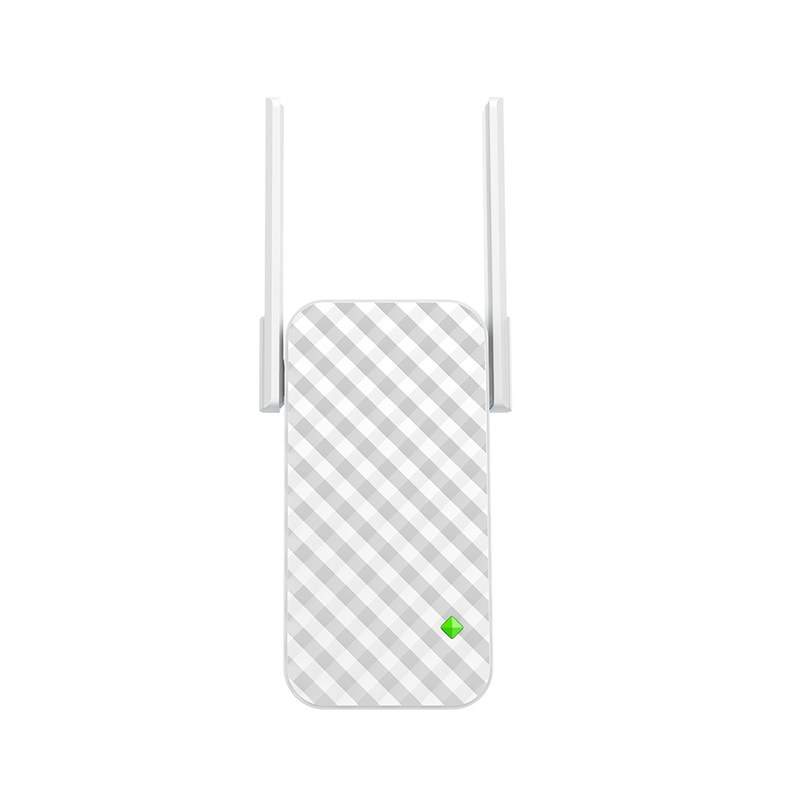

Wireless N300 Universal Range Extender
A9 is a wireless N300 universal range extender, specially designed to extend the exisiting WiFi coverage and improve the signal strength. With one button extension, smart signal LED, wall-mount design and universal compatibility, it is easy for users to boost wireless networking. A9 is an ideal choice for you to eliminate WiFi dead zones and optimize your networking.

Rate
802.11b : 11 Mbps
802.11g : 54 Mbps
802.11n : 300Mbps

StandardProtocol
IEEE802.11b,IEEE 802.11g, IEEE 802.11n

Modulation
802.11b: DSSS / BPSK / QPSK / CCK
802.11g: OFDM / DSSS / BPSK / QPSK / CCK
802.11n: OFDM / DSSS / BPSK / QPSK / CCK

Frequency
2.412 - 2.484 GHz

Power
16dBm

Reception Sensitivity
11b: -95dBm 11g: -76dBm 11n: -73dBm

Antenna
2 3dBi external non-detachable

Standard Version
RFC768 UDP
RFC791 IP
RFC792 ICMP
RFC793 TCP
Channel Bandwidth: 20/40MHz (default)

Working Mode
Repeater Mode (Client + AP)

Wireless Security
Encryption Mode: Mix WPA-PSK/WPA2-PSK
WPA Algorithm: TKIP

DHCP
ServerSupport

System Tool
Upgrade
Reset to Factory Default
Login Password
System Log
Reboot

Temperature
Operating Temperature:0^oC - 40^oC
Storage Temperature:-40 - 70^oC

Humidity
Operating Humidity:10% - 90%, non-condensing
Storage Humidity:5% - 90%, non-condensing

Item Dimension (L inchxW inchxH inch)
6 x 4 x 3

Weight
1.00 lb

Warranty Information
3 Year after INV.
