LT520

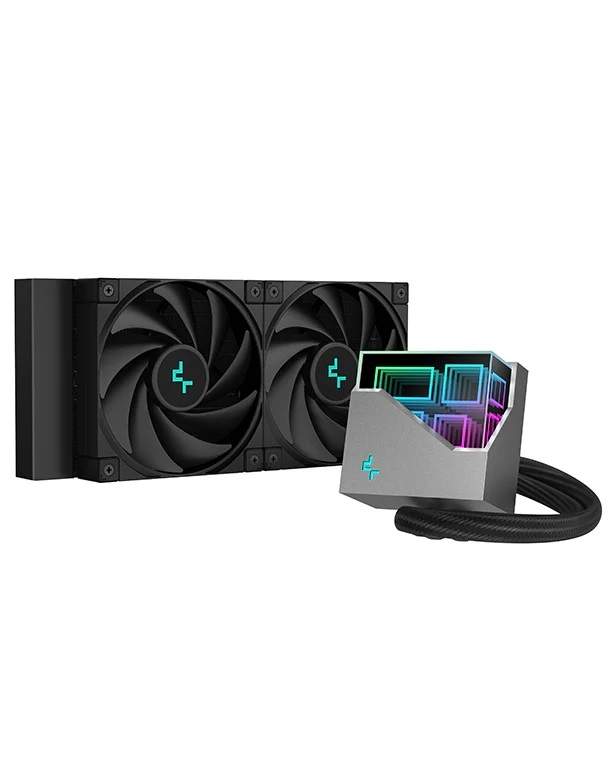

The DeepCool LT520 high-performance liquid CPU cooler provides strong heat dissipation power with a 240mm radiator, two precision-tuned FK120 fans, and a multidimensional infinity mirror top cap.

A NEW ERA OF DeepCool
Built on our 4th Generation high-performance water pump that maximizes cooling performance featuring:
1. Improved microchannel design ensures optimal coolant flow.
2. Powerful three-phase drive motor up to 3100 RPM.
3. Thick solid copper base with a seamless match.

EXTREMELY POWERFUL
Maximize cooling potential with DeepCool FK120 fans that are balanced to perfection for both performance and operational efficiency. The sturdy frame and fluid dynamic bearings offer stable and long-term reliability.

Radiator Material
Aluminum

Tube length
410 mm(LxWxH)

Pump Speed
3100 RPM +/- 10%

Pump Noise
19 dB(A)

Pump Connector
3-pin

Pump Rated Voltage
12 VDC

Pump Rated Current
0.38 A

Pump Power Consumption
4.56 W

Fan Speed
500 to 2250 RPM +/- 10%

Fan Airflow
85.85 CFM

Fan Air Pressure
3.27 mmAq

Fan Noise
is less than or equal to 32.9 dB(A)

Fan Connector
4-pin PWM

Bearing Type
Fluid Dynamic Bearing

Fan Rated Voltage
12 VDC

Fan Rated Current
0.22 A

Fan Power Consumption
2.64 W

LED Type
Addressable RGB LED

LED Connector
3-pin(+5V-D-G)

LED Rated Voltage
5 VDC

LED Power Consumption
3.15 W (PUMP)

Item Dimension (L inchxW inchxH inch)
14 x 10 x 6

Weight
7.00 lb

Warranty Information
5 years
