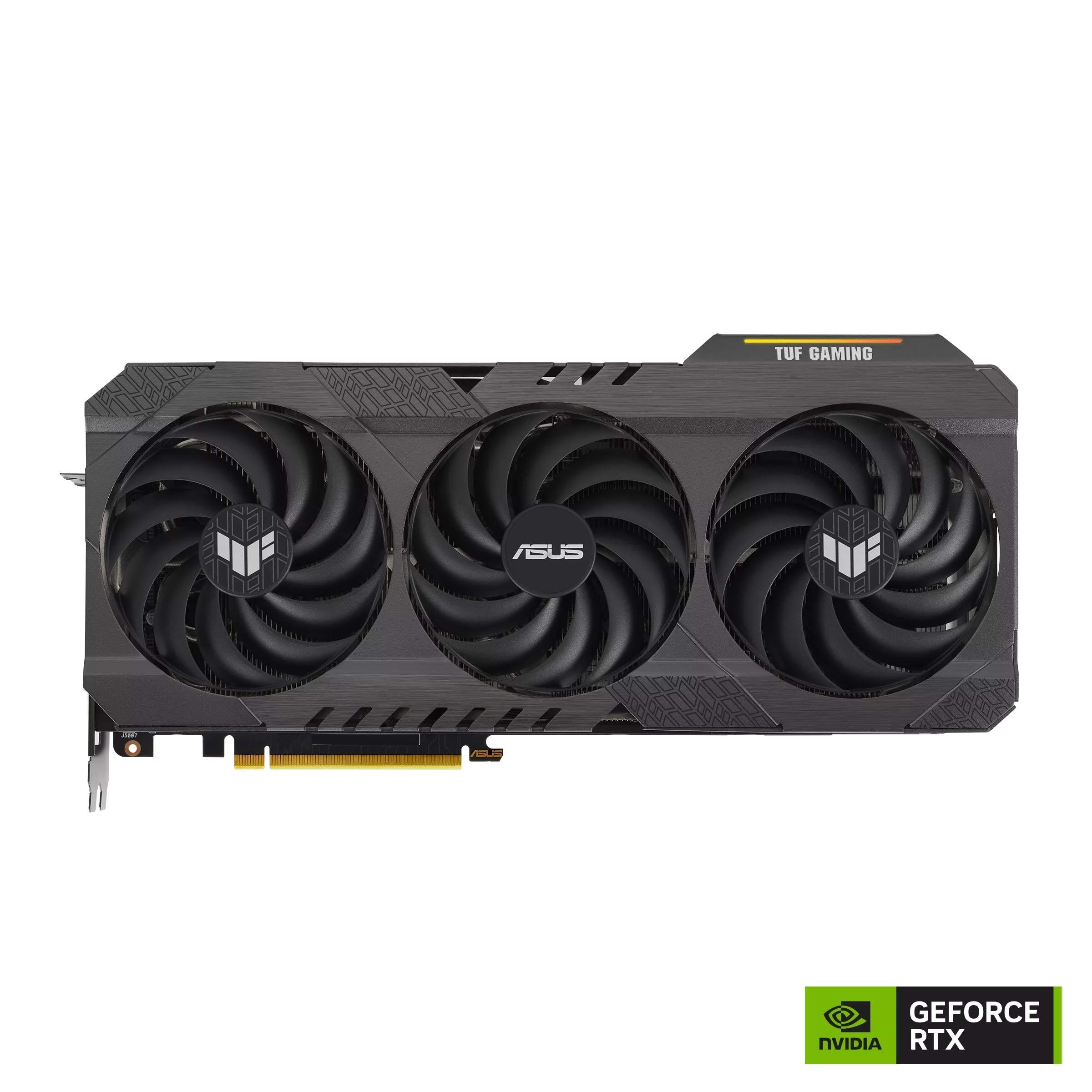

ASUS TUF Gaming GeForce RTX 4090 24GB GDDR6X OG OC Edition with DLSS 3, lower temps, and enhanced durability
Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
OC edition: 2595 MHz (OC mode)/ 2565 MHz (Default mode)
Axial-tech fan design has been tuned with a reversed central fan direction for less turbulence
Dual ball fan bearings last up to twice as long as conventional designs
Military-grade capacitors rated for 20K hours at 105C make the GPU power rail more durable
Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring

Model
TUF-RTX4090-O24G-OG-GAMING

Graphic Engine
NVIDIA GeForce RTX 4090

Bus Standard
PCI Express 4.0

OpenGL
OpenGL4.6

Video Memory
24GB GDDR6X

Engine Clock
OC mode: 2595MHz (Boost clock)
Default mode: 2565MHz (Boost clock)

CUDA Core
16384

Memory Speed
21 Gbps

Memory Interface
384-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support
4

NVlink/ Crossfire Support
No

Accessories
1 x Collection Card
1 x Speedsetup Manual
1 x Adapter Cable
1 x Thank you Card
1 x TUF Velcro Hook and Loop

Software
ASUS GPU Tweak III and GeForce Game Ready Driver and Studio Driver: please download all software from the support site.

Recommended PSU
850W

Power Connectors
1 x 16-pin

Slot
3.2 Slot

AURA SYNC
ARGB

Note
Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the Choose By Wattage feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.

Item Dimension (L"xW"xH")
21 x 11 x 4

Weight
7 lbs

Warranty Information
3 Year Warranty
