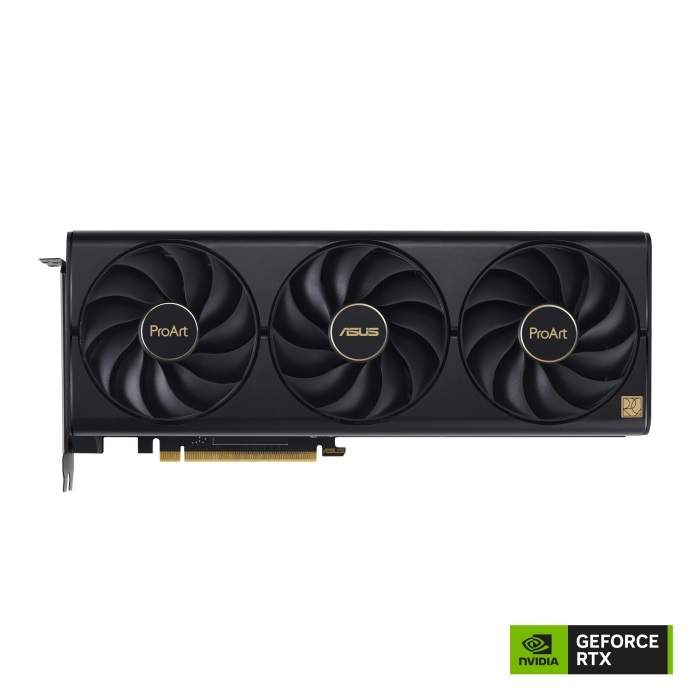

ProArt GeForce RTX™ 4080 SUPER 16GB GDDR6X OC Edition

• NVIDIA Studio: RTX and AI-accelerated creator apps, exclusive AI software, and Studio Drivers for unmatched creativity and performance
• NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power
efficiency
• 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
• 3rd Generation RT Cores: Up to 2x ray tracing performance
• OC mode: 2640 MHz (OC mode)/ 2610 MHz (Default mode)
• Axial-tech fans scaled up for 21% more airflow
• 2.5-slot design: allows for greater build compatibility while maintaining premium cooling
• Dual Ball Fan Bearings last up to twice as long as conventional designs
• Auto-Extreme precision automated manufacturing for higher reliability
GPU Tweak III profile Connect enables creators to seamlessly optimize system performance and cooling for every app

Model
PROART-RTX4080S-O16G

Graphic Engine
NVIDIA GeForce RTX^TM 4080 SUPER

Bus Standard
PCI Express 4.0

OpenGL
OpenGL4.6

Video Memory
16GB GDDR6X

Engine Clock
OC mode : 2640 MHz
Default mode : 2610 MHz (boost)

CUDA Core
10240

Memory Speed
23 Gbps

Memory Interface
256-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 1 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)

Maximum Display Support
4

NVlink/ Crossfire Support
No

Accessories
1 x Collection Card
1 x Speedsetup Manual
1 x Adapter Cable (1 to 3)
1 x ProArt Graphics Card Holder
1 x ASUS Velcro Hook and Loop
1 x Thank you Card

Software
ASUS GPU Tweak III and GeForce Game Ready Driver and Studio Driver: please download all software from the support site.

Recommended PSU
850W

Slot
2.5 Slot

Note
1. Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the Choose By Wattage feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
2. All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.

Item Dimension (L inchxW inchxH inch)
24 x 19 x 11

Weight
37 lbs

Warranty Information
3 Years
